    • FT-G006B光伏接线盒
  • FT-G006B光伏接线盒
  • 防护等级IP67 灌胶型 3个二极管 4个端子
  • 立即咨询

    Product Features:

    ● With the capacity of age and UV-resistance.

    ● The PV-Junction box can in the atrocious weather.

    ● Found in outdoor use under harsh environmental conditions required.

    ● Crimp connection is used for the solar cable.

    ● Welding connections is used for ribbon band.

    ● More convenient installation and maintenance.

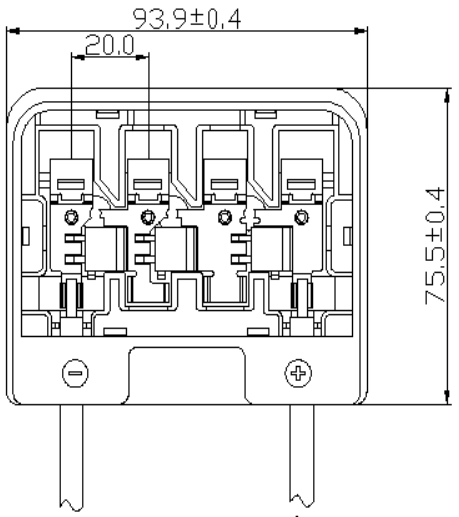

    Structure:


    Number of terminals

    4

    Number of diodes

    3

    Cable Spec

    4mm2

    Connection method

    Soldering

    Weight

    240(g)


    Specifications:

    Rated current

    15A

    Rated Voltage

    1000/1500V DC

    Operating Temperature

    -40°C to 85°C

    Protection Degree

    IP65

    Protection Class

    Class II
